@benjamincremer
Organizer of the PHP Usergroup Münster
Lead Developer at CHECK24 Hotel
Linux / Operations Guy / On-Call

Using elks and large telegraph poles to squash tiny bugs

Application metrics and log aggregation with open source tools

Disclaimer

• This has no storyline
• It has no fancy graphics
• It contains a lot of practical information
• Examples apply for CHECK24 Hotel
• The stack is running for a high double digit number of prod nodes

Topics

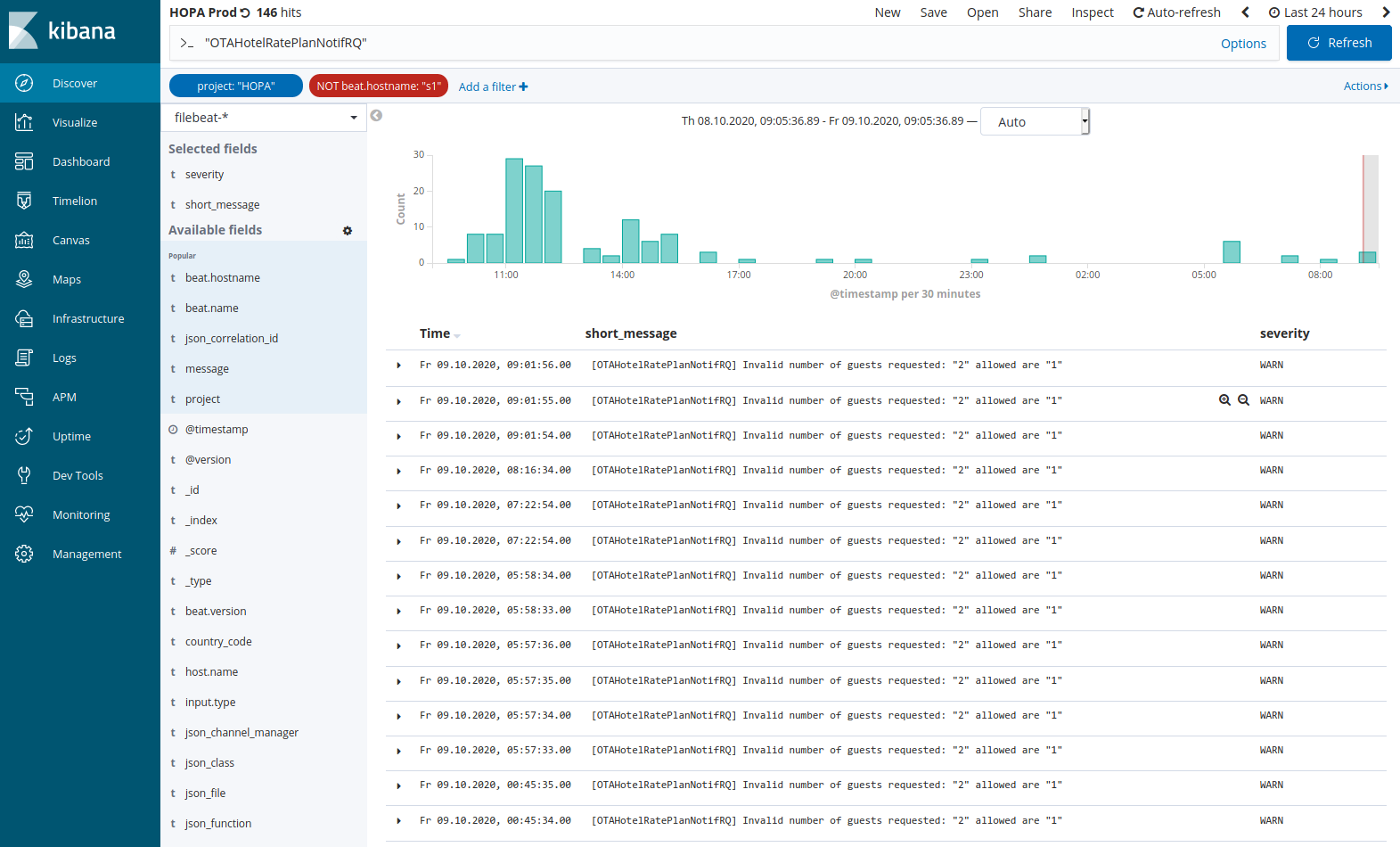

• Log aggregation and visualization
• System Monitoring
• Application Metrics
• Profiling
• Alerting and Escalating

Logfiles are everywhere

• Application logfiles: myapp/logs/app.log
• Daemon logfiles: /var/log/nginx/*.log, mysql, fpm etc.
• systemd journal

grep and tail -f are great tools for one single node

Requirements

• Aggregate logs from various sources and servers to a central storage
• Transform unstructured loglines into structured documents
• Fulltext Search and Filters

Filebeat

• Collects logfiles from services (nginx, fpm) and applications
• Tagging and simple filtering
• Runs on each node/container that generates logfiles
• Sends data to logstash for further processing

Log Format for Application logs

// Example for Laminas Log Writer
'options' => [
  'stream' => __DIR__ . '/logs/app.log',
  'formatter' => [
    'name' => Simple::class,
    'options' => [
      // Kibana log format
      'format'         =>'[%timestamp% - %priorityName% (%priority%)]: %message% ~>%extra%',
      'dateTimeFormat' => 'Y-m-d H:i:s',
    ],
  ],
],


$container->get(LoggerInterface::class)->warning(
    'User logged in.',
    ['username' => 'benjamin', 'status' => 'admin']
);


$ cat logs/app.log
[2021-01-21 16:37:11 - WARN (4)]: User logged in. ~>{"username":"benjamin","status":"admin"}


filebeat.inputs:
- type: log
  paths:
    - /srv/application/logs/*.log
  fields:
    log_type: application_log_format
  fields_under_root: true
  exclude_lines: ['DEBUG']

- type: log
  paths:
    - /var/log/messages
    - /var/log/syslog
  fields:
    log_type: syslog
  fields_under_root: true
  exclude_lines: ['DEBUG']

output.logstash:
    hosts: ["192.168.1.10:5043"]


More Beats

• journalbeat
• metricbeat
• winlogbeat
• ...

Logstash

• Parse & transform data on the fly
• Derive structure from unstructured data with grok
• Lookup geo coordinates from IP addresses
• Anonymize or exclude sensitive fields, and ease overall processing

Logstash

Input(s) -> Filter(s) -> Output(s)

# /etc/logstash/conf.d/01-input-beats.conf
input {
    beats {
        port => "5043"
    }
}


# /etc/logstash/conf.d/99-output.elasticsearch.conf
output {
    elasticsearch {
        hosts => ["192.168.1.100:9200"]
        manage_template => false
        index => "%{[@metadata][beat]}-%{[@metadata][version]}-%{+YYYY.MM.dd}"
    }
}


# /etc/logstash/conf.d/10-filter-application_log_format.conf
filter {
    if [log_type] == "application_log_format" {
        grok {
            match => { "message" => "%{APPLICATION_LOG_FORMAT}" }
        }
        date {
            match => [ "timestamp", "yyyy-MM-dd HH:mm:ss" ]
            remove_field => ["timestamp"]
        }
        json {
            source => "jsonmsg"
        }
        mutate {
            uppercase => [ "severity" ]
        }
        if [severity] == "WARNING" {
            mutate {
                update => { "severity" => "WARN" }
            }
        }
    }
}


Grok Pattern

APPLICATION_LOG_FORMAT \[%{TIMESTAMP_ISO8601:timestamp} - %{WORD:severity} (\(%{NUMBER:warnlevelnum}\))?\]:(?m)%{GREEDYDATA:short_message} ~>%{GREEDYDATA:jsonmsg}

$ cat logs/app.log
[2021-01-21 16:37:11 - WARN (4)]: User logged in. ~>{"username":"benjamin","status":"admin"}

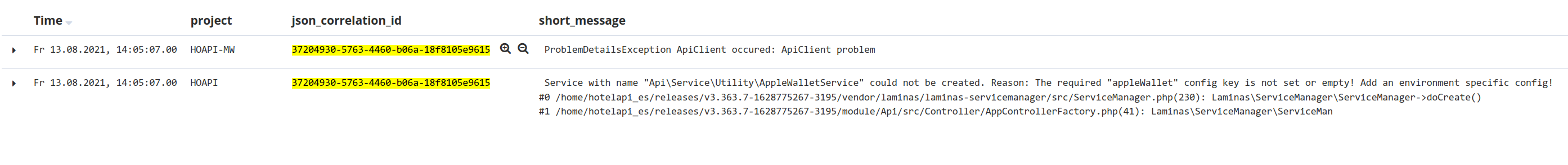

Correlation ID

• Unique ID created "at the edge"
• Created for every Frontend pageload
• Passed down to subsystems (background jobs) via HTTP header
• Find related requests to an error
• Header: C24-Correlation-Id
• In Logfile: correlation_id

final class CorrelationIdMiddleware implements MiddlewareInterface
{
    private const HEADER_NAME = 'C24-Correlation-Id';

    public function process(Request $request, RequestHandlerInterface $handler): Response
    {
        $correlationID = $this->getCorrelationIdFromRequestHeader($request);
        if ($correlationID === null) {
            $correlationID = CorrelationId::create();
        }

        $response = $handler->handle(
            $request->withAttribute(CorrelationId::class, $correlationID);
        );

        return $response->withHeader(self::HEADER_NAME, $correlationID->toString());
    }
}


class CorrelationIdProcessor implements ProcessorInterface
{
    public function process(array $event): array
    {
        $event['extra']['correlation_id'] = $this->requestContext->getCorrelationId();

        return $event;
    }
}

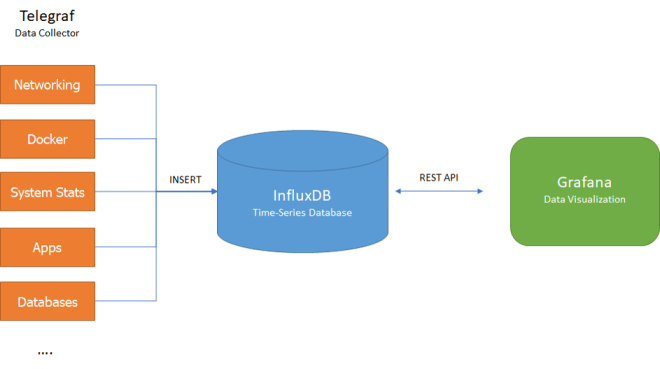

TIG Stack (Telegraf, InfluxDB, and Grafana)

Telegraf

Data collector written in Go for collecting, processing, aggregating and writing metrics

Runs on each host, pushes data to influxdb

Telegraf

• Single binary with no external dependencies
• Minimal memory footprint
• Plugin system allows for new inputs and outputs

InfluxDB

Scalable time series database for metrics, events and real-time analytics.

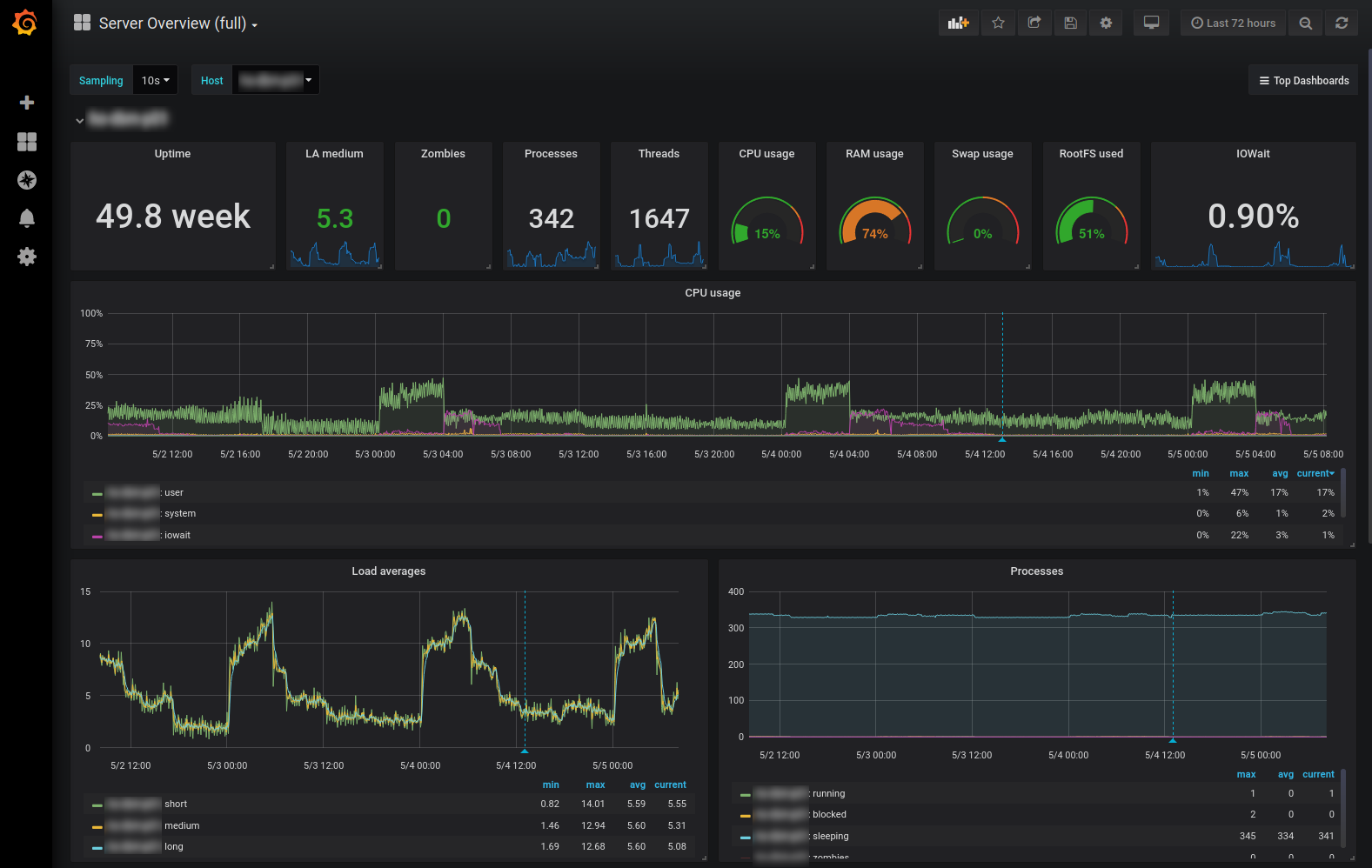

Grafana

• an open source analytics and interactive visualization software
• provides charts, graphs, and alerts
• can be connected to multiple supported data sources
• expandable through a plug-in system

Grafana

End users can create complex monitoring dashboards using interactive query builders.

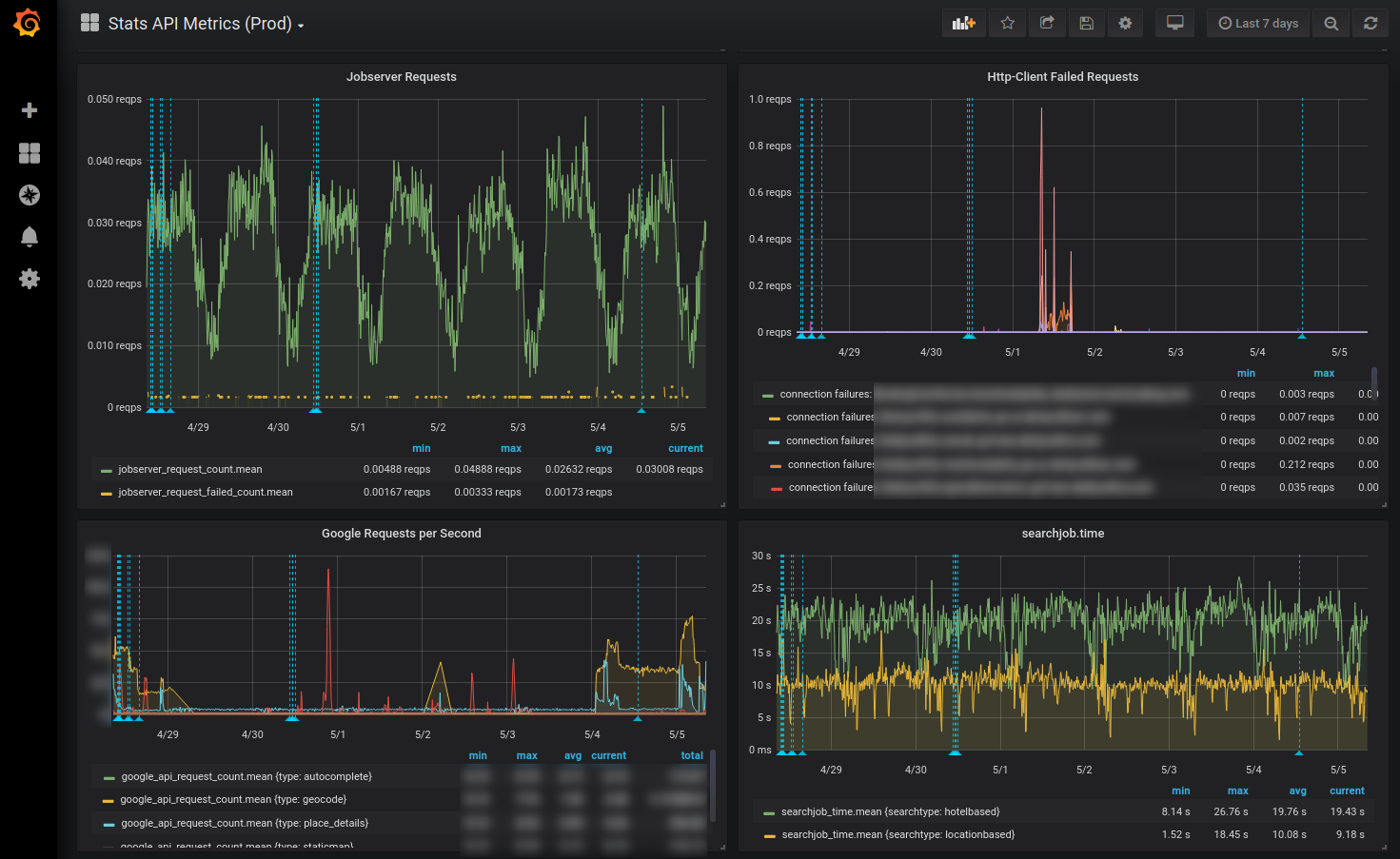

Application Metrics

• Technical Metrics (example: Outgoing Proivder Request/s, AVG Response time)
• Business Metrics (Bookings per Hour, Error rate, Offer-Count by Provider)

Telegraf statsd Plugin

• StatsD standard
• UDP port on localhost
• PHP Application writes to UDP port
• Nearly Zero overhead

Application Metrics in Code

interface MetricServiceInterface
{
    public function increment(string $metric, int $delta = 1, array $tags = []): void;

    public function decrement(string $metric, int $delta = 1, array $tags = []): void;

    public function timing(string $metric, int $timeInMs, array $tags = []): void;

    public function gauge(string $metric, int $value, array $tags = []): void;
}


Application Metrics

public function geocodeRequest(array $params): Response
{
    $googleResponse = $this->fetchUrl(self::GOOGLE_GEOCODE_URI, $params);
    $this->metricService->increment(MetricName::GOOGLE_API_REQUEST_COUNT, 1, ['type' => 'geocode']);

    return $googleResponse;
}


Measure CPU-Time

$rUsage = getrusage();
$startUTime = $rUsage['ru_utime.tv_usec'] + $rUsage['ru_utime.tv_sec'] * 1000000;
$startSTime = $rUsage['ru_stime.tv_usec'] + $rUsage['ru_stime.tv_sec'] * 1000000;

// execute your code

$rUsage = getrusage();
$user   = ($rUsage['ru_utime.tv_usec'] + $rUsage['ru_utime.tv_sec'] * 1000000 - $startUTime) / 1000;
$system = ($rUsage['ru_stime.tv_usec'] + $rUsage['ru_stime.tv_sec'] * 1000000 - $startSTime) / 1000;

$cpuTimeMilliseconds = $user + $system;

$this->metricService->timing(
    MetricName::MVC_REQUEST_CPU_TIME,
    (int) $cpuTimeMilliseconds,
    $tags
);

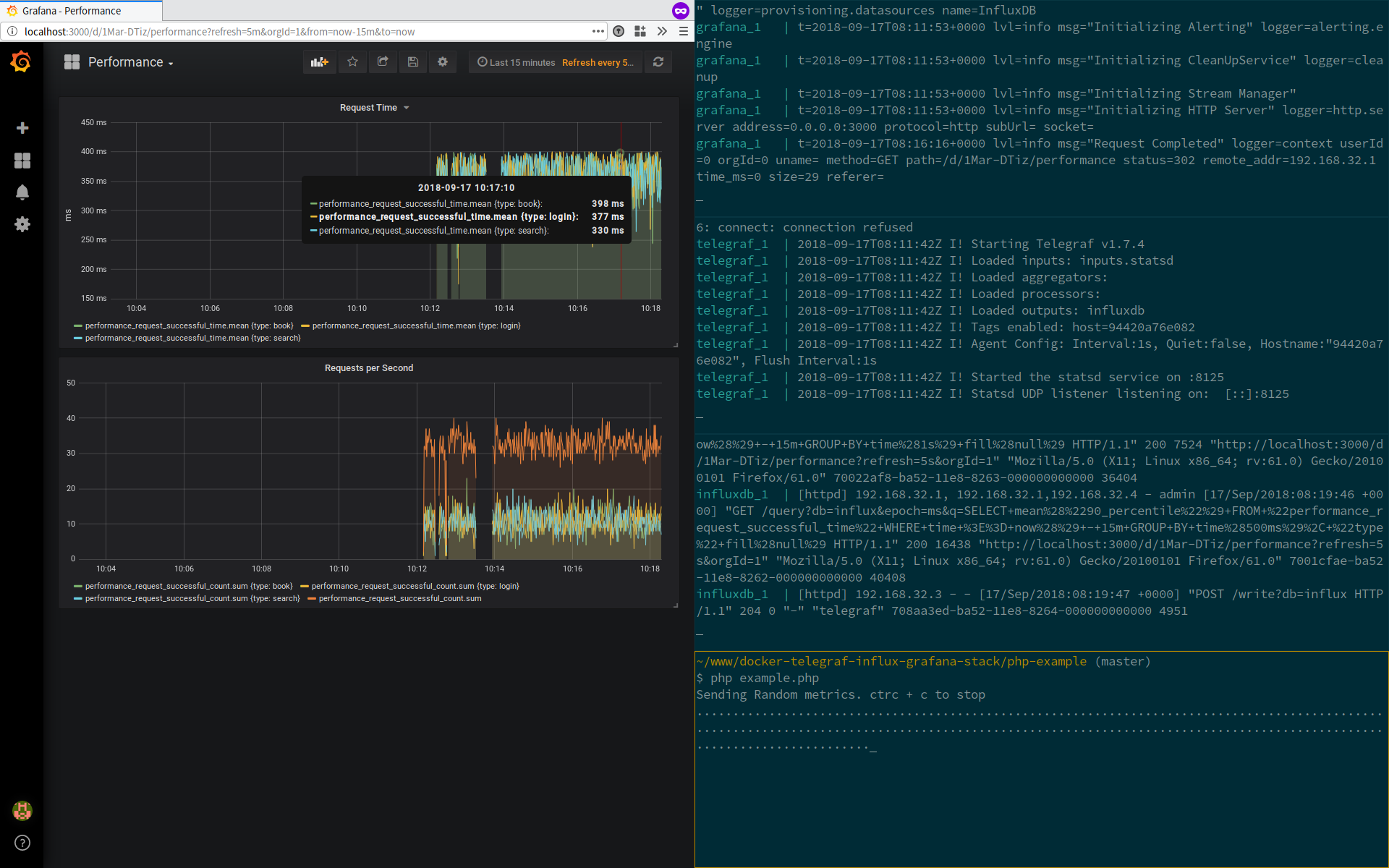

Docker Stack for Telegraf StatsD InfluxDB Grafana

https://github.com/bcremer/docker-telegraf-influx-grafana-stack

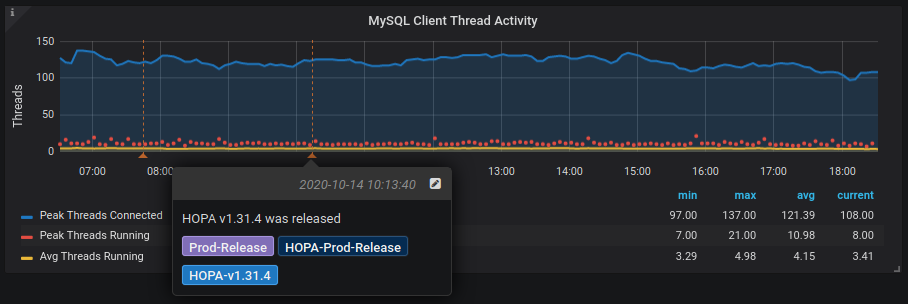

Grafana Annotations

#!/usr/bin/env bash

currentTime=$(date +%s%N | cut -b1-13)
tag="${bamboo.deploy.release}"

# POST to Grafana
curl -X POST \
  https://grafana/api/annotations \
  -H 'Authorization: Bearer deadbeefapitoken' \
  -H 'Content-Type: application/json' \
  -d "{
  \"time\":${currentTime},
  \"tags\":[\"Prod-Release\", \"HOAPI-Prod-Release\", \"HOAPI-${tag}\"],
  \"text\":\"HOAPI ${tag} was released\"
}"

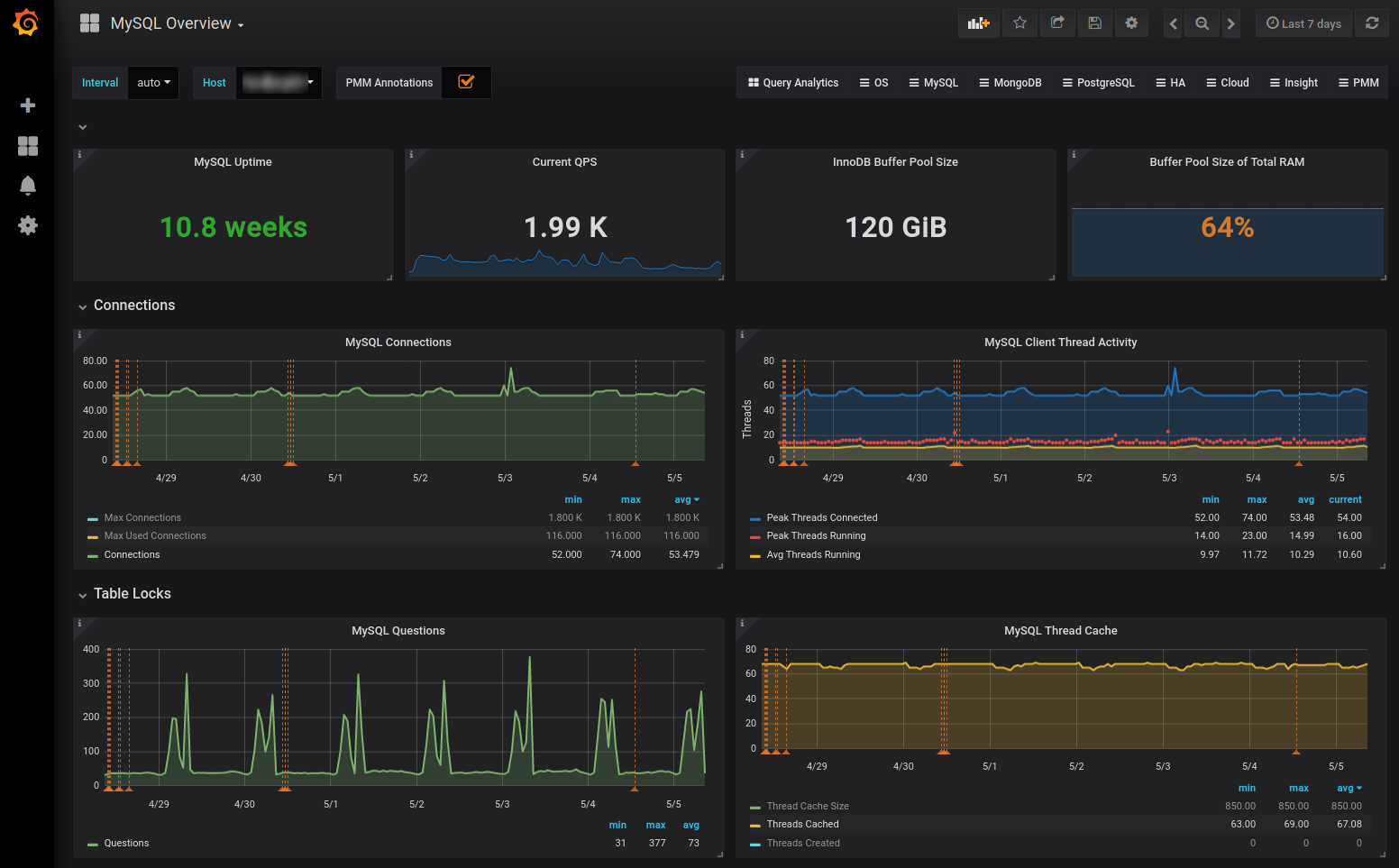

PMM - Percona Monitoring and Management

• open source platform for managing and monitoring MySQL performance
• developed by Percona
• based on Grafana and Prometheus (Starting from 2.12 VictoriaMetrics)
• Runs agent on DB Server
• Reads slowlog and performance schema

PMM query analytics

Which query has more impact?

Query A: 120ms latency
Query B: 800ms latency


It Depends

Query A: 120ms latency @ 20 QPS   = Load 2.400
Query B: 800ms latency @ 0.5 QPS  = Load 0.060


Slow Query Log sampling

Gather a representative sample of queries

[mysqld]
slow_query_log                    = ON
slow_query_log_file               = /var/log/mysql/mysql-slow.log

# log all queries regardless of runtime
long_query_time                   = 0

# randomly log every 1/log_slow_rate_limit query
# 100 = one percent of queries will be logged
log_slow_rate_limit               = 100


[mysqld]
# See: https://www.percona.com/doc/percona-monitoring-and-management/conf-mysql.html#pmm-conf-mysql-slow-log-settings
slow_query_log                    = ON
slow_query_log_file               = /var/log/mysql/mysql-slow.log
log-queries-not-using-indexes
long_query_time                   = 0
log_slow_rate_limit               = 100
log_slow_rate_type                = query
log_slow_verbosity                = full
log_slow_admin_statements         = ON
log_slow_slave_statements         = ON
slow_query_log_always_write_time  = 1
slow_query_log_use_global_control = all
innodb_monitor_enable=all
userstat=1

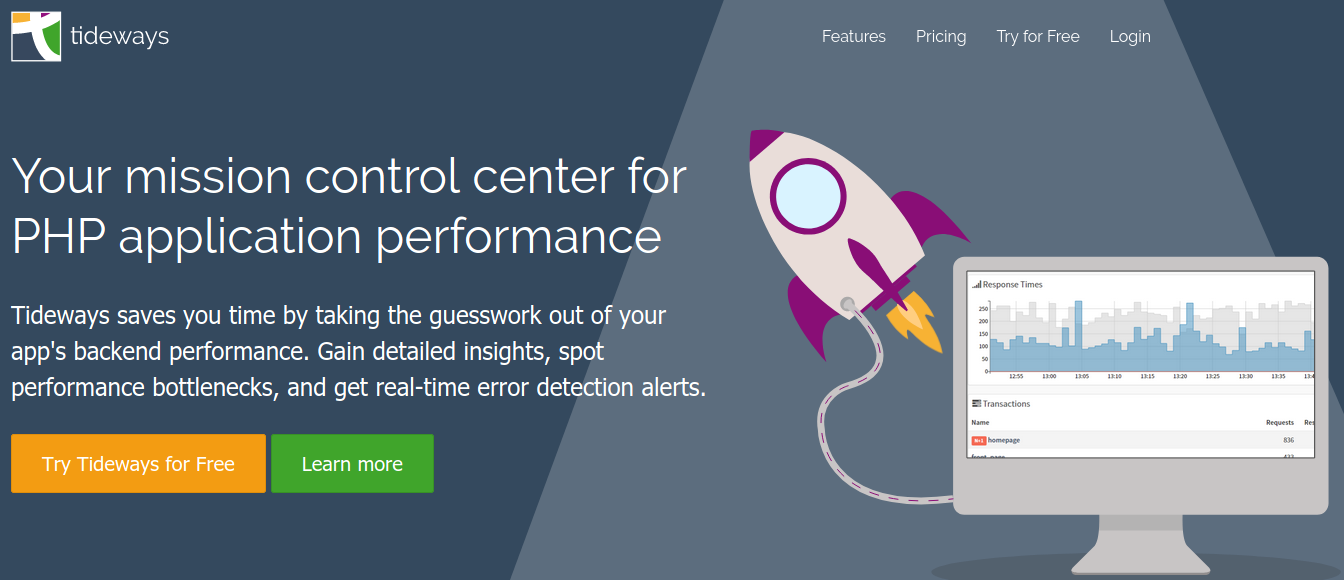

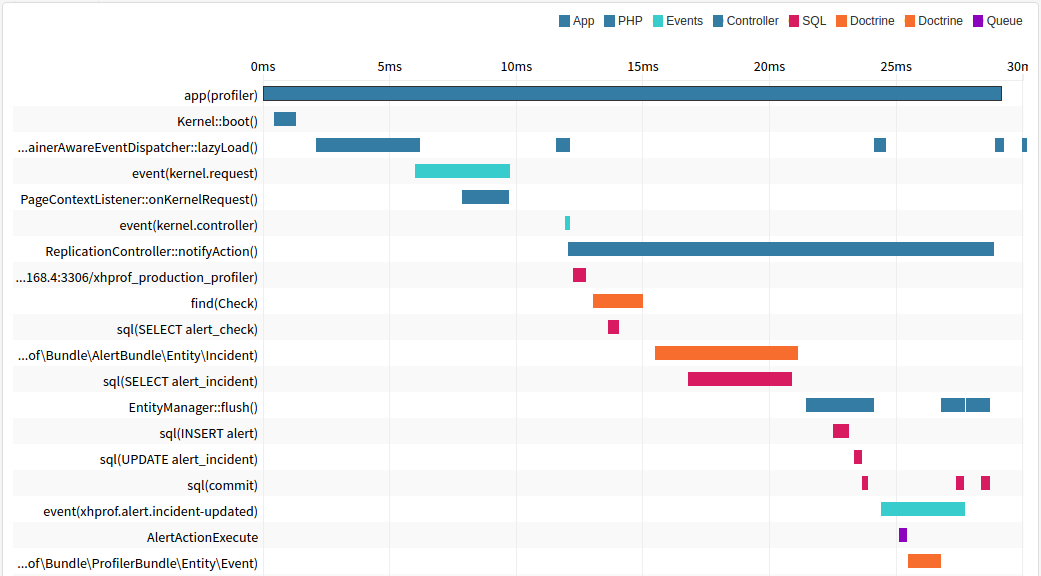

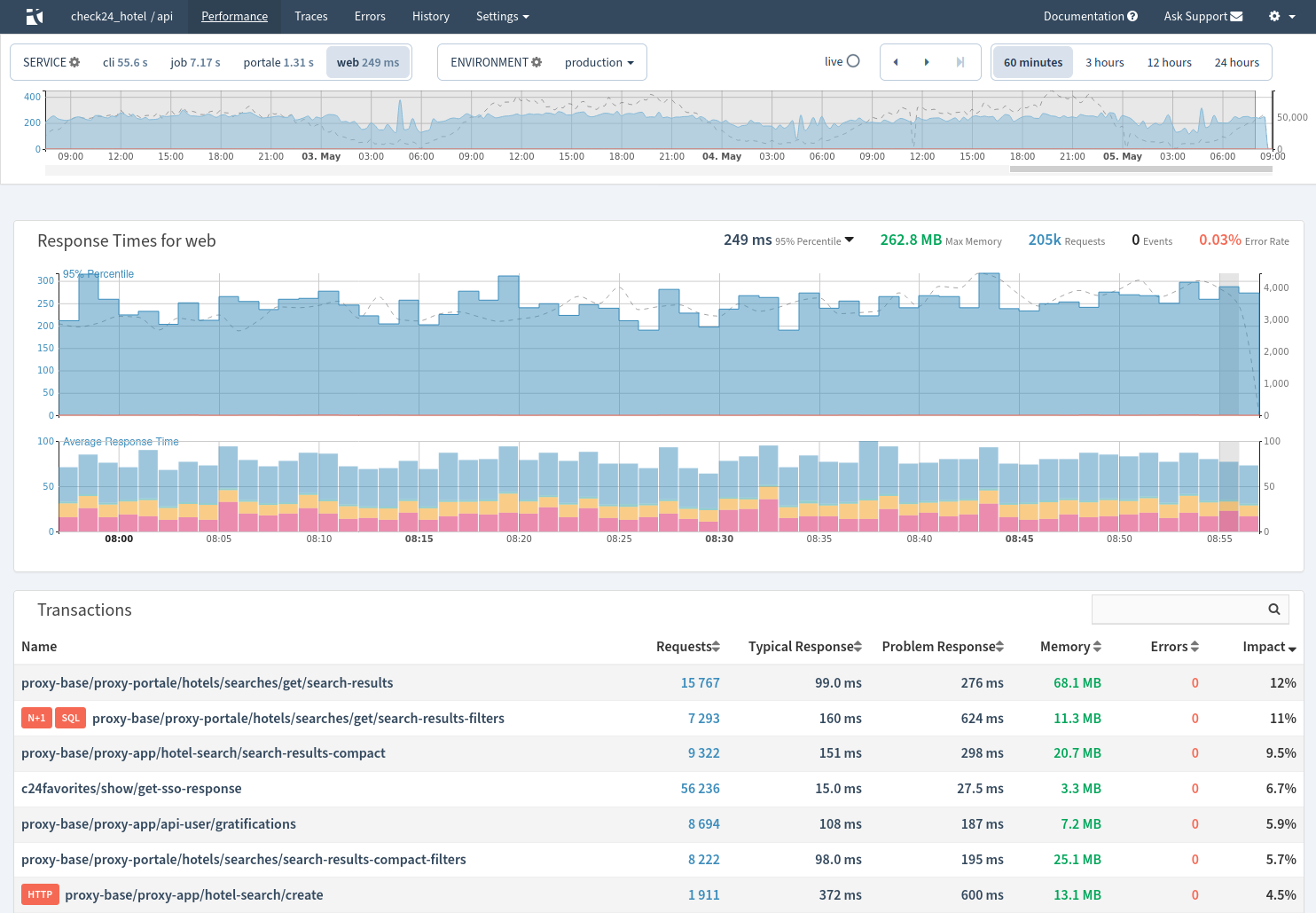

Tideways

Tideways

• Originally based on xhprof
• PHP Extension
• Aggregation daemon on localhost (UDP)

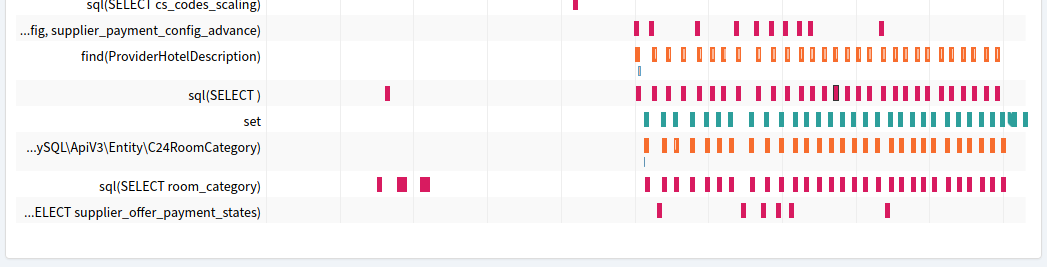

N+1 Queries

Alerts

• Grafana thresholds and webhooks
• Own tooling (business hours, flexible thresholds)

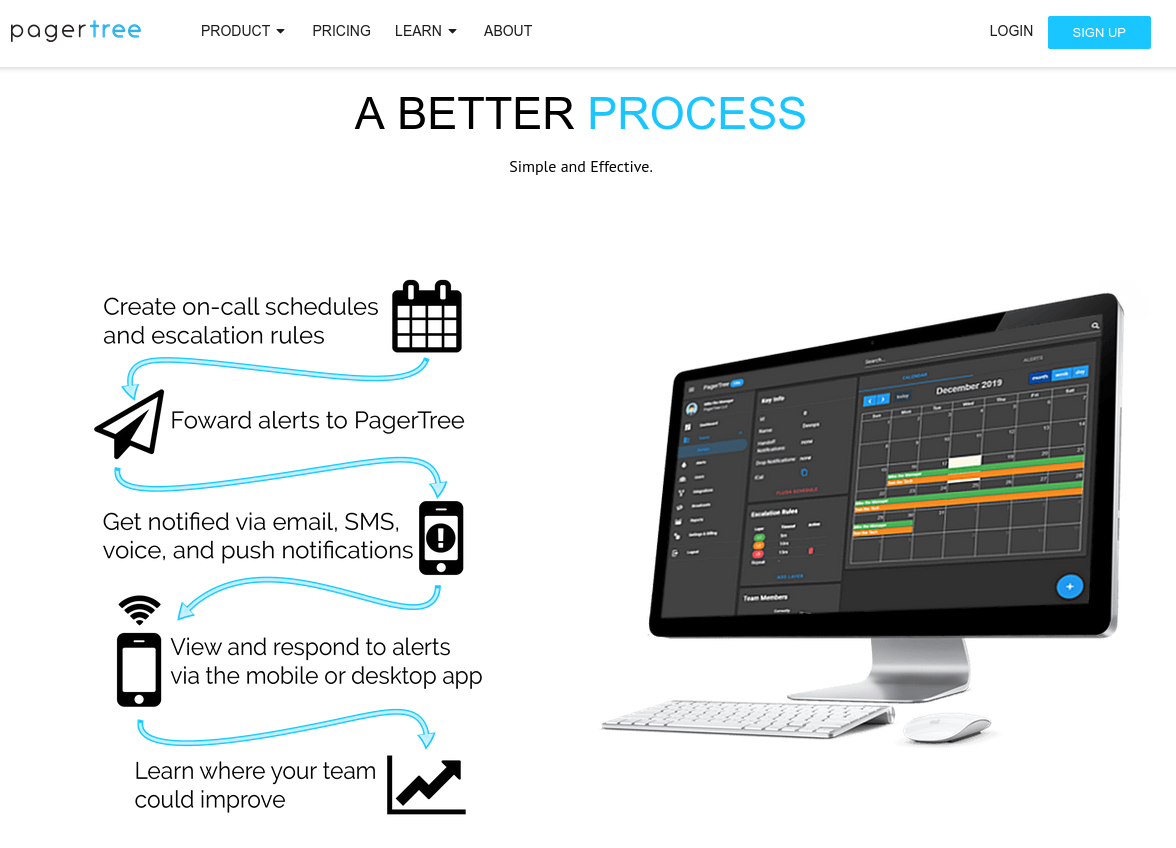

• On-Call and Escalation managment using pagerduty/pagertree etc.

Alternatives

• Commercial: splunk, datadog
• Open Source: TICK (Telegraf, Influx, Chronograf, Kapacitor)
• Alternative Datasource: Prometheus
• Overlapping: Kibana has dashboards and metrics too

Thank you

Please leave me feedback.

Q and A
